Offer

Homeowner/Landowner Riders

R 316TsX AWD

$17,290.00Rec. retail price incl. GST $17,990.00SKU: 970542910
  • Power/fuel typePetrol
  • Cutting width, min94 cm

HOT PRICE

Save up to $700! This season take advantage of hot prices on selected Wheeled products for a limited time!*

Terms & Conditions: *Offer effective 01/09/24 - 31/12/24, at participating Husqvarna Dealers and Husqvarna.com/nz only, while stocks last. Valid for the following models only - Garden Tractors - TS112, TS114, TS142T, TS142TXD, TS242TXD, TS248TXD, TS354, TC138T. TC114 & TC242TX. Zero-Turns - Z146, Z242E & Z242F. Riders - R214TC, R316TX-CC103 & R316TSXAWD-CC12. CLICK HERE for more info & offers.

Product description

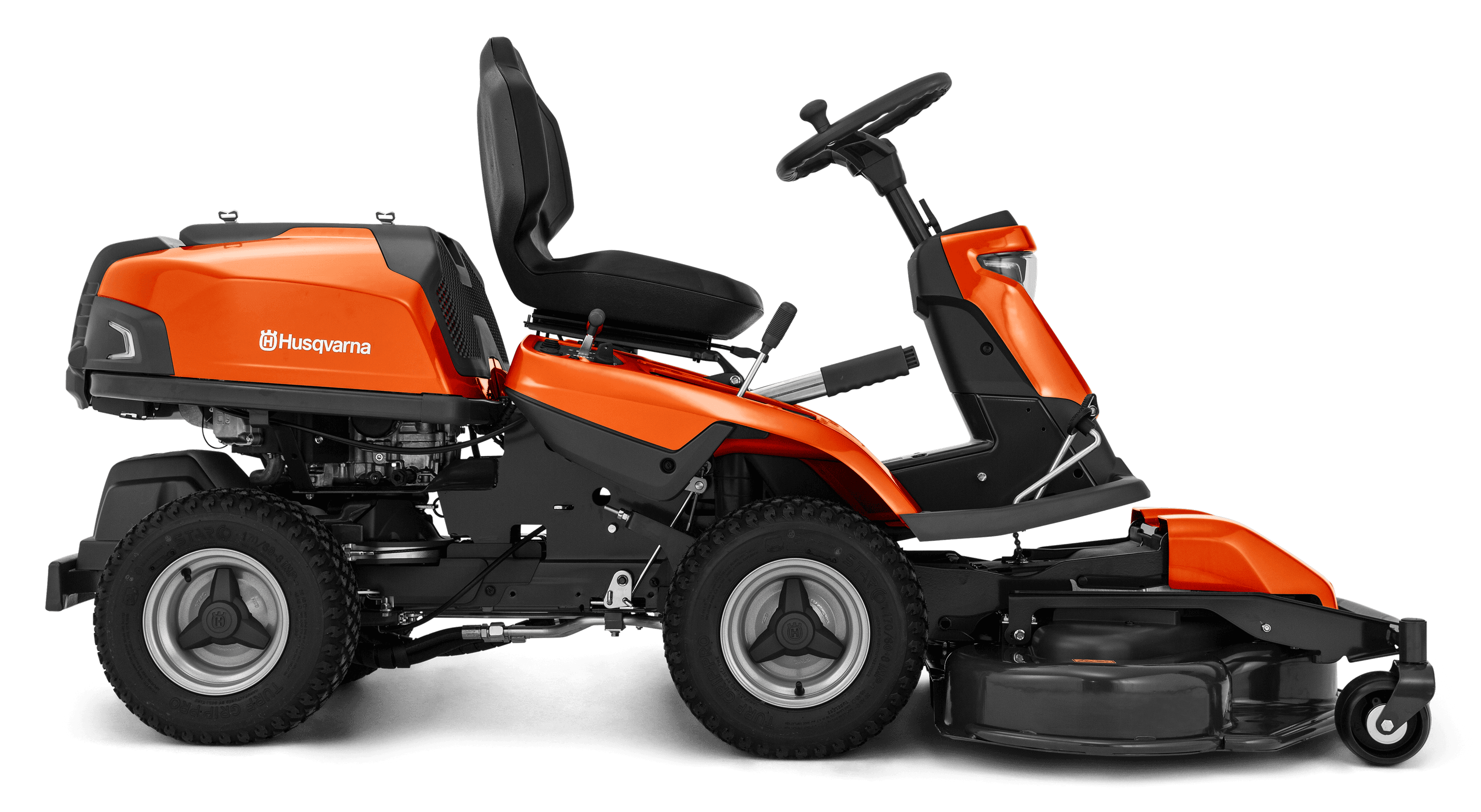

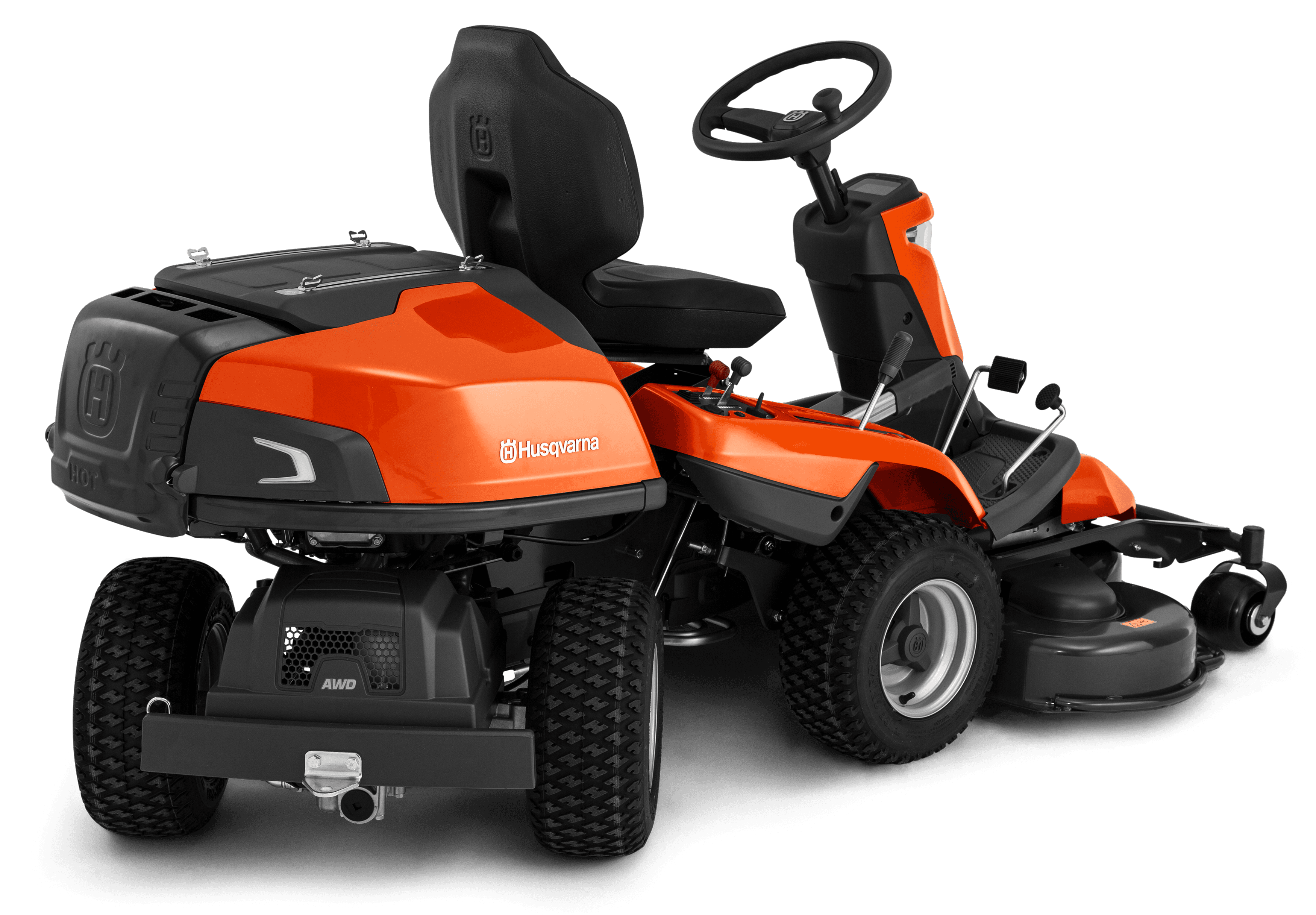

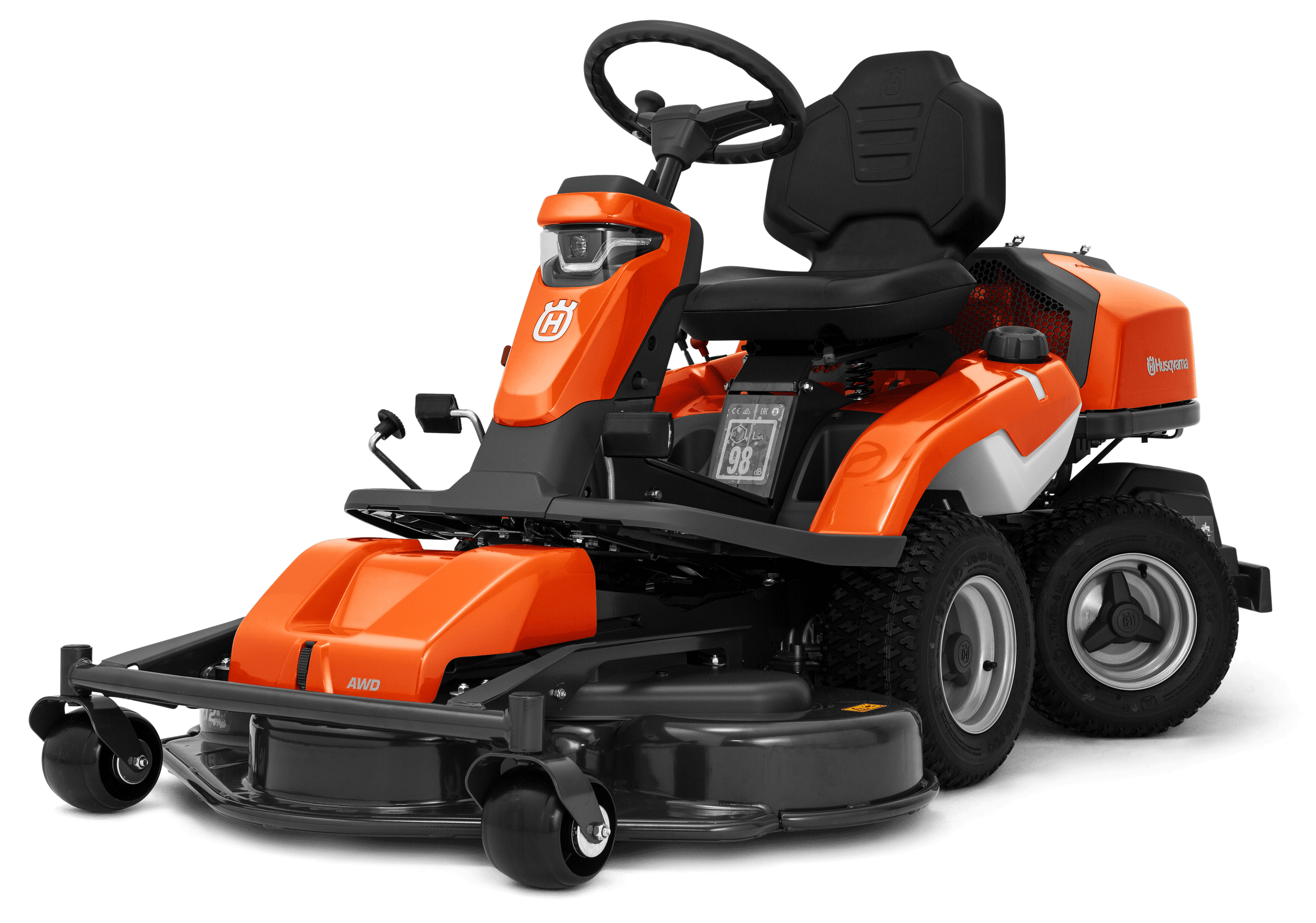

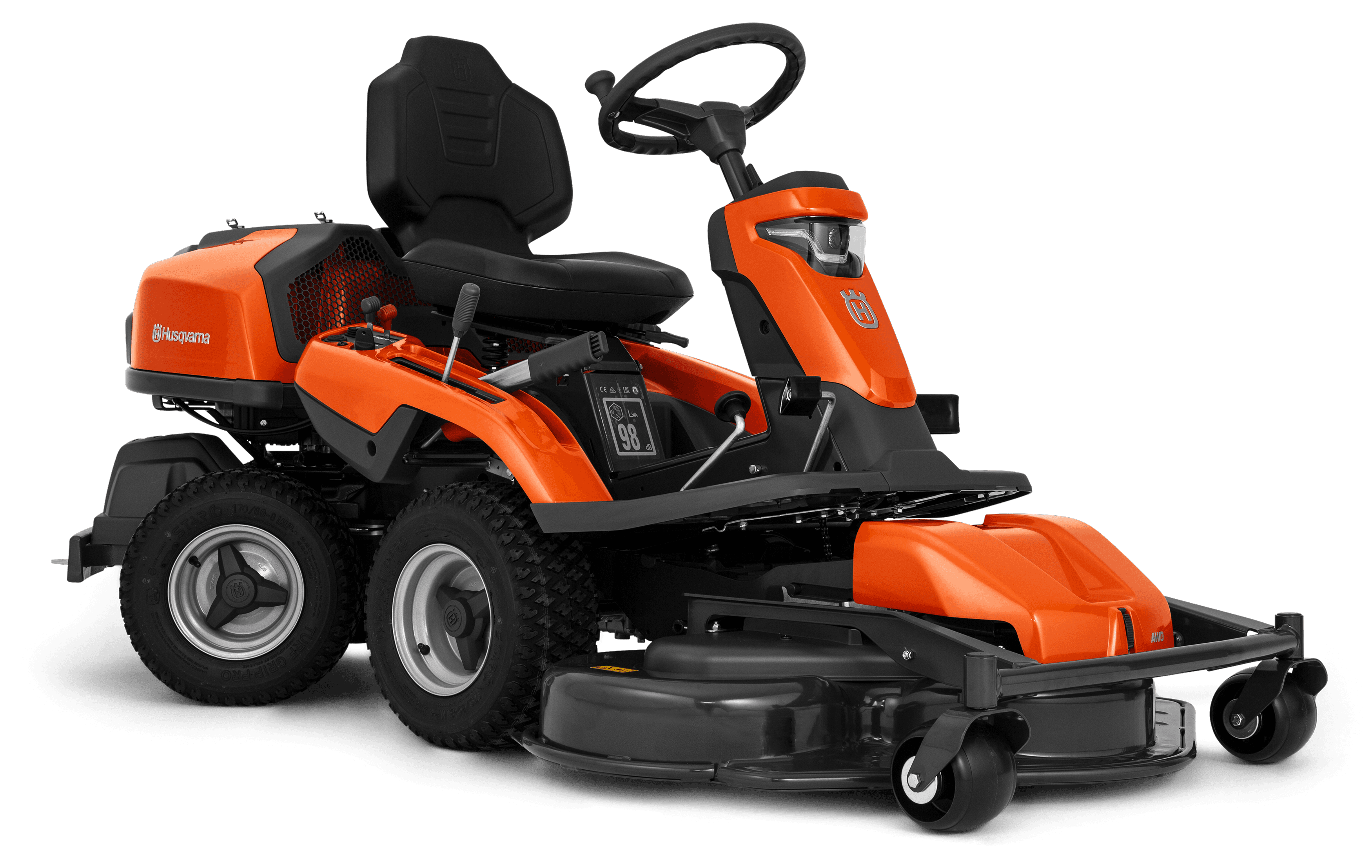

A high-performance ride-on lawn mower built for the toughest jobs. Husqvarna R 316TsX AWD is superb for all-year use, with a great variety of accessories and combi cutting decks available. Power-assisted articulated steering and All-Wheel-Drive provide great control and traction in challenging terrain. The engine hood covering the V-Twin engine features integrated rails for attaching accessories like cargo holder. LED lights are fitted front and back. Ready for Husqvarna Connect with Bluetooth®.

5-year warrantyFinance options

Product Information

Features (12)

For greater ergonomics and comfort a telescopic steering column allows the steering wheel height to be adjusted. image

Adjustable steering wheel

Steering wheel height can be adjusted with a telescopic steering column for excellent ergonomics and comfort.

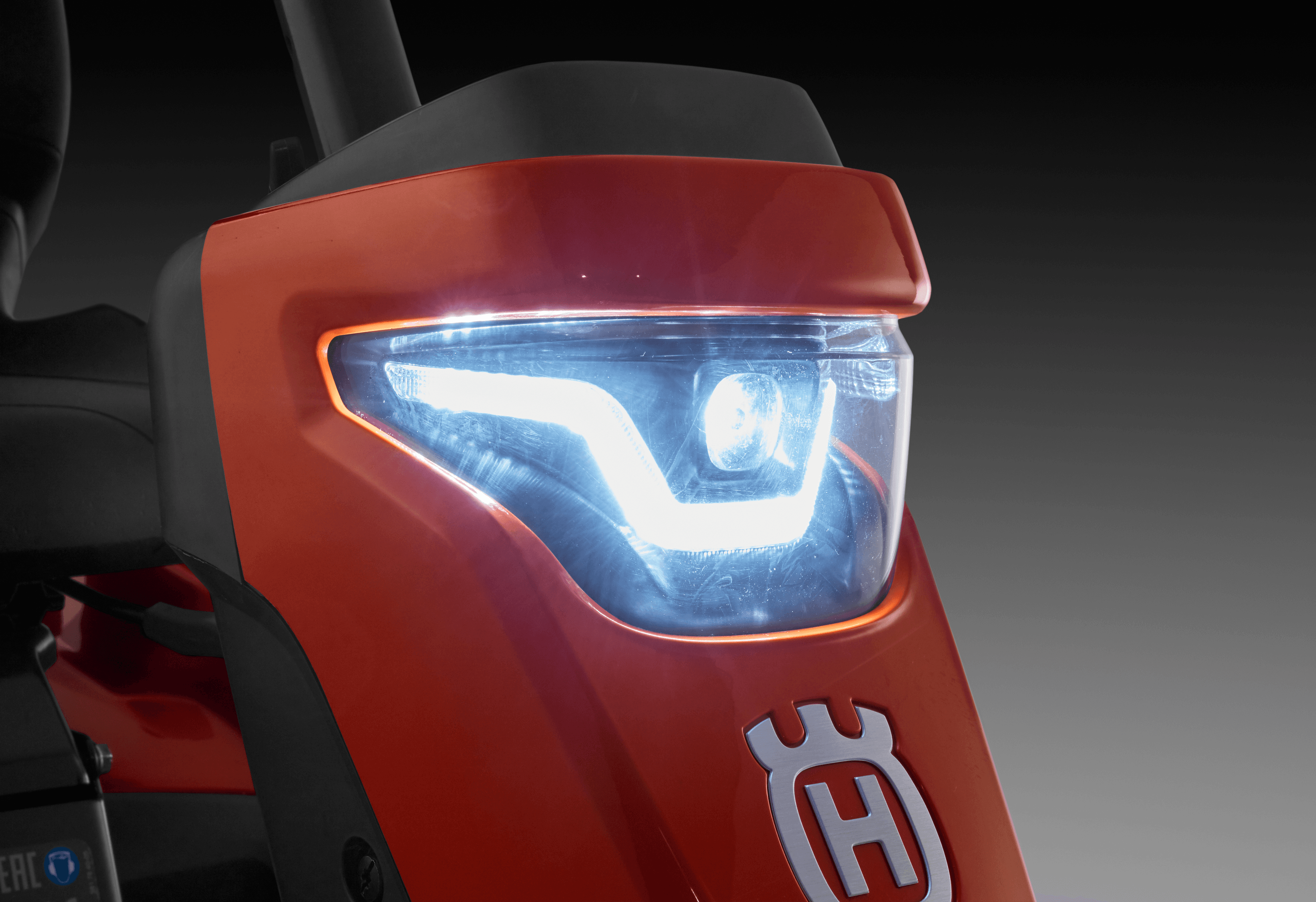

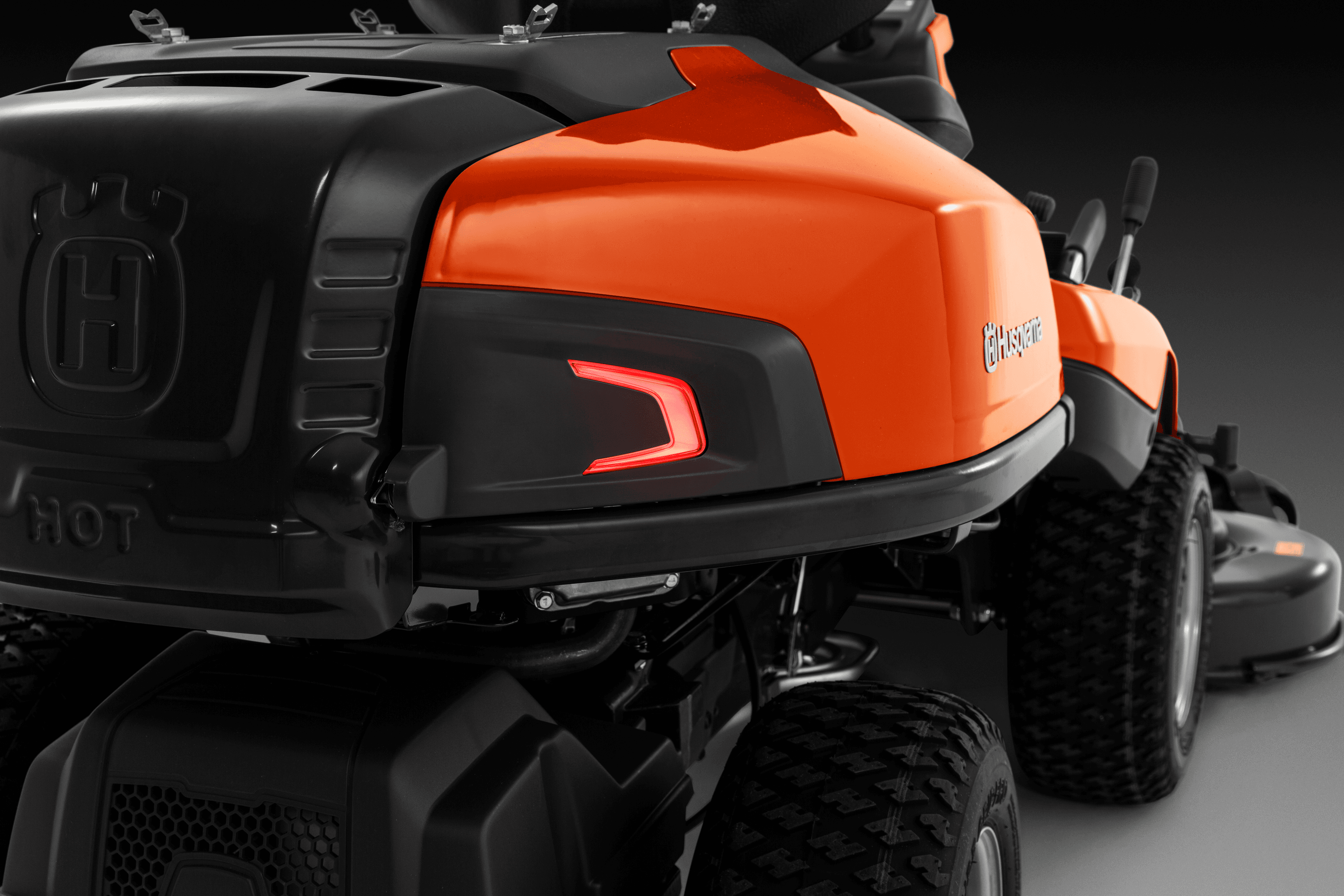

Dual LED lights for enlarged lighted area and safer operation in darker conditions. image

Dual LED lights for improved visibility.

Dual LED lights for improved visibility.

This Rider is fitted with a Combi cutting deck for efficient BioClip® (mulching) and rear ejection cutting. image

Combi cutting deck

Combi cutting deck

With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low centre of gravity contributes to extra traction as well as a comfortable "sit-in" feeling for the user. image

Comfortable driver's position

With a Rider you get safety, stability and traction on both flat grounds and hillsides.

The articulated steering gives excellent maneuverability and facilitates driving around obstacles such as trees and bushes. Since the rear pair of wheels can swing underneath the machine, the turning radius becomes minimal at full lock. image

Articulated steering

The articulated steering gives excellent maneuverability and facilitates driving around obstacles.

Power steering makes driving less strenuous and more comfortable, as less force is required to operate the steering wheel. image

Power steering

Power steering makes driving less strenuous and more comfortable.

Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc. image

Front-mounted cutting deck

Front-mounted deck for optimum accessibility

The cutting deck can be tilted up into service position for easy access during cleaning or service. image

Service position

The cutting deck can be tilted up into service position for easy access during cleaning or service.

The attachment frame facilitates versatile use and makes it easy to shift between cutting decks and front-mounted attachments, such as broom, flail mower, snow blade and snow thrower. image

Attachment frame

The attachment frame makes it easy to shift between cutting decks and front-mounted attachments.

All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. This gives you reliable maneuverability and uniform cutting results, even when the conditions are challenging. AWD automatically adjusts the traction on all wheels depending on situation and ground condition. image

All-Wheel-Drive (AWD)

All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes.

The intuitive HMI display provides real-time data and guides through visual symbols and warning sounds to facilitate the driver's work. image

HMI Display

The intuitive HMI display guides through visual symbols and warning sounds to facilitate the driver's work.

With the smart Husqvarna Connect app, you’ll have easy access to helpful tips, manuals and spare part recommendations. For your connected Bluetooth equipment, the app also provides additional information such as runtime and charging status as well as maintenance and service needs. The app can be downloaded, free of charge, from App Store or Google Play. image

Husqvarna Connect

With the smart Husqvarna Connect app, you’ll have easy access to tips, manuals and spare part recommendations. The app also provides additional information such as runtime and charging status as well as maintenance and service needs.

Specifications

Art No: 970542910
Output shaft power9.7 kW
Weight (excl. cutting equipment)251 kg
Cylinder displacement603 cm³
Weight (complete product w/o side packed articles)251 kg
Fuel tank volume12 l
Sound pressure level at operators ear87 dB(A)
Base machine, height118.1 cm
Base machine, length200.8 cm
Base machine, width88.3 cm
Battery capacity24 Ah
Battery pack weight7.2 kg
Battery voltage12 V
Cutting height max75 mm
Cutting height min25 mm
Cutting width, max112 cm
Cutting width, min94 cm
Fuel consumption349 g/kWh
Fuel tank volume3.17 gal (US)
Gross weight towed125 kg
Ground clearance90 mm
Net power at preset rpm3100 rpm
Net power at preset rpm Energy9.7 kW
Oil capacity1.7 l
Sound power level, guaranteed (LWA)99 dB(A)
Sound power level, measured98 dB(A)
Speed forward max9 km/h
Speed reverse max8 km/h
Uncut circle30 cm
Vibration level seat0.7 m/s²
Vibration level steering wheel2.5 m/s²
Wheelbase88.7 cm
